Atess Inverter

Factory Direct Price

Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house & commercial solar system solution customization services.

Factory Direct Price

Door to Door. Provide engineer on-site service. Support DIY accessories ordering or whole-house & commercial solar system solution customization services.

Product Descriptions

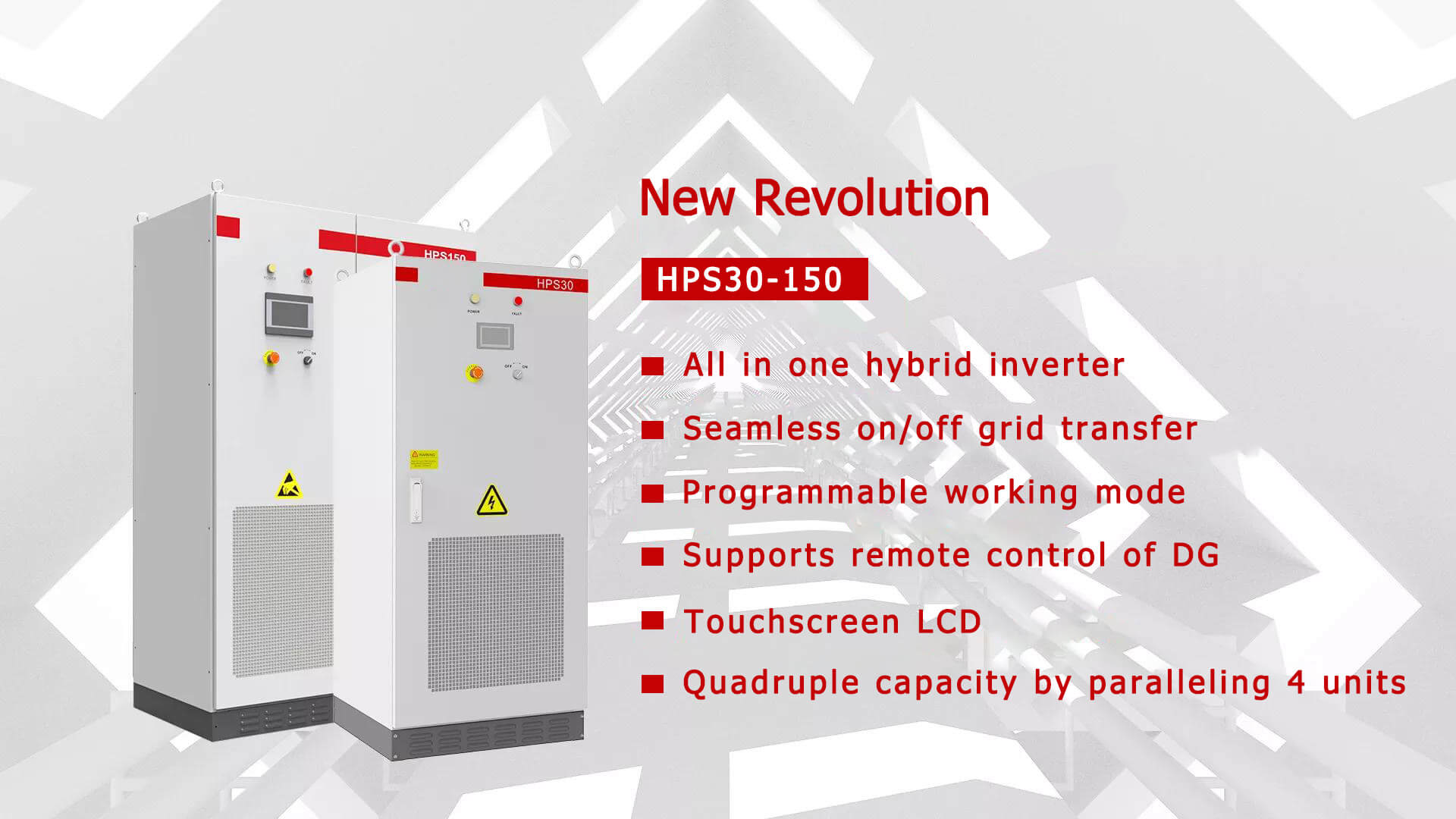

30 kw solar inverter price

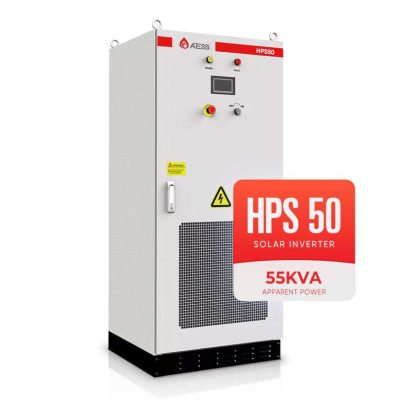

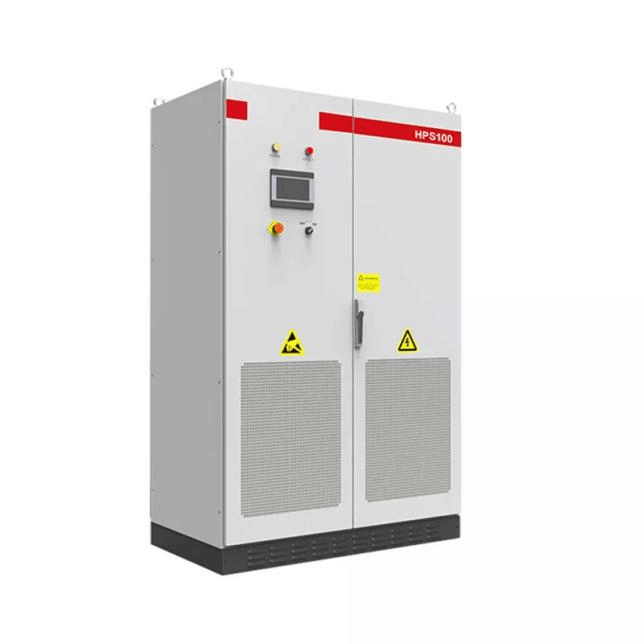

Atess HPS 50 Hybrid Solar Inverter

Atess HPS30 30KW Hybrid Solar Inverter

  • Wide input voltage range.
  • Compatible with lead-acid or lithium-ion batteries or other battery.
  • Fashion apperance, light weight, smart operation.
  • Natural cooling, low noise.
  • IP65 , wall mounted design, saving space. Touch screen LCD.
  • Compatible anti counter flow function. Battery reverse connect protection.
  • Intelligent energy management system for home.
  • Power dispatching and demand side response management.
  • Distributed virtual power station management.

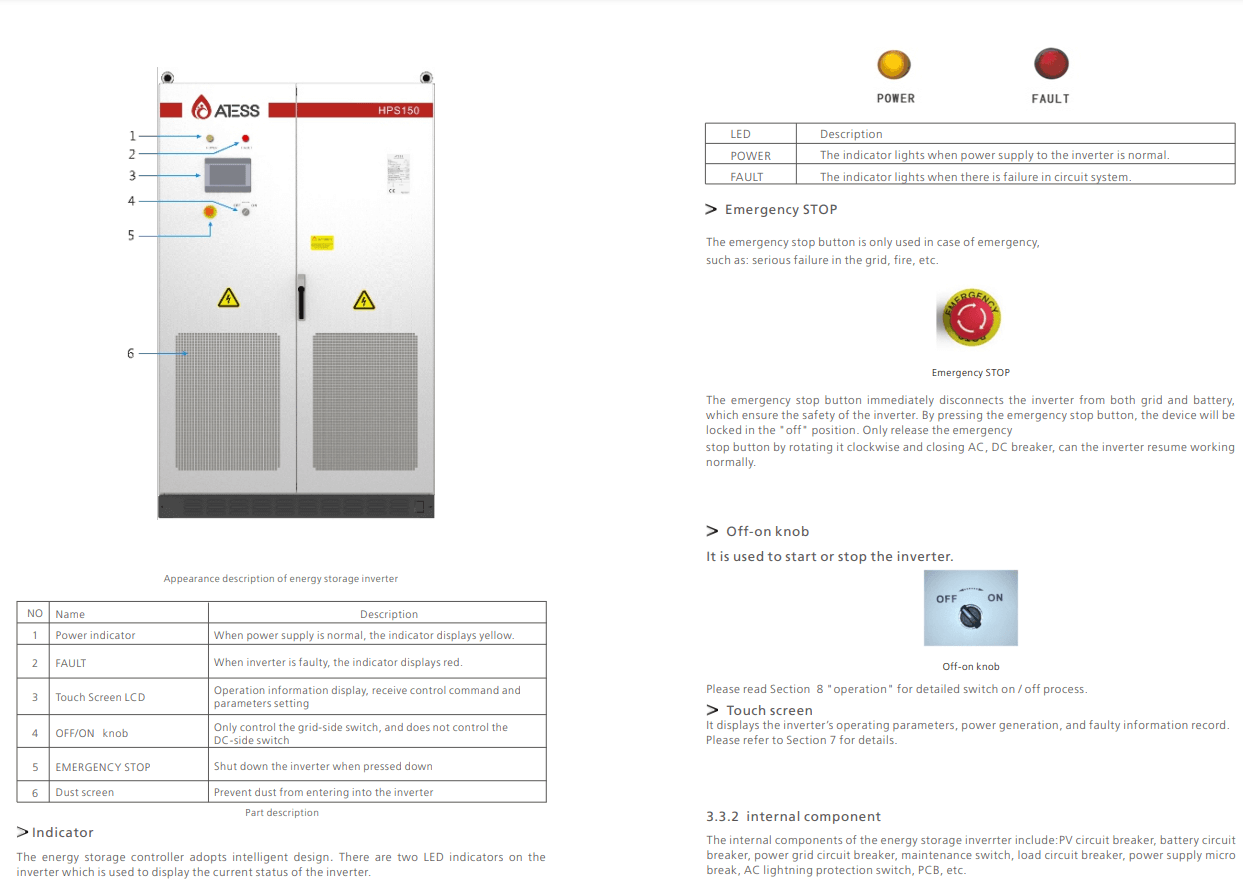

hybrid inverter 50kw

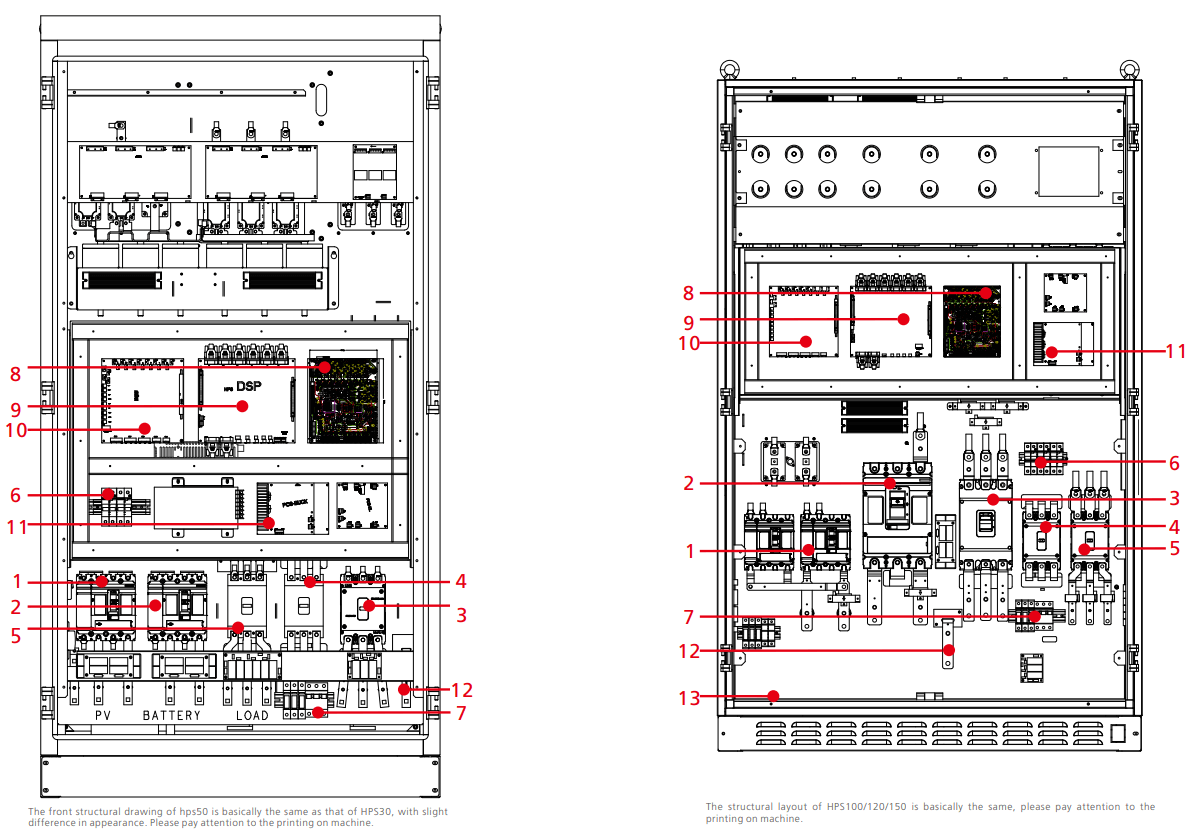

50kw hybrid solar inverter

Package and Delivery

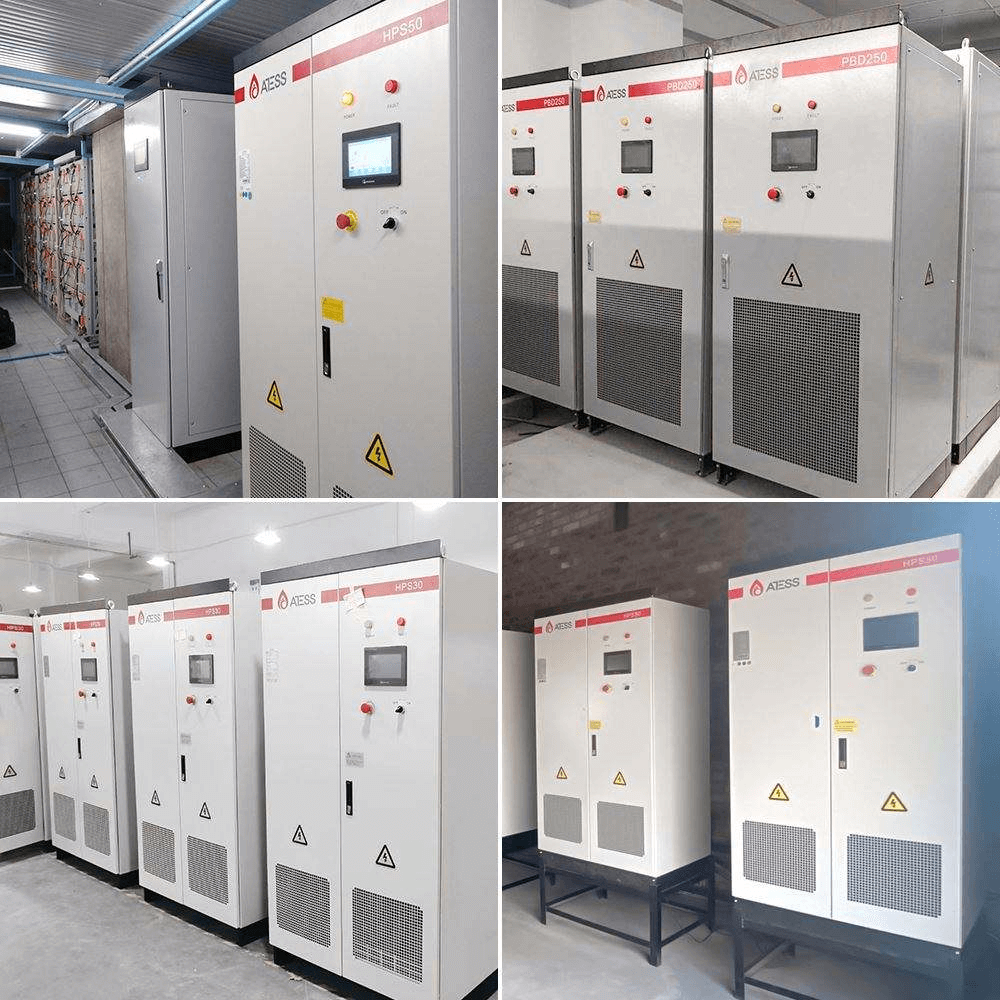

Atess 30kw Hybrid Inverter

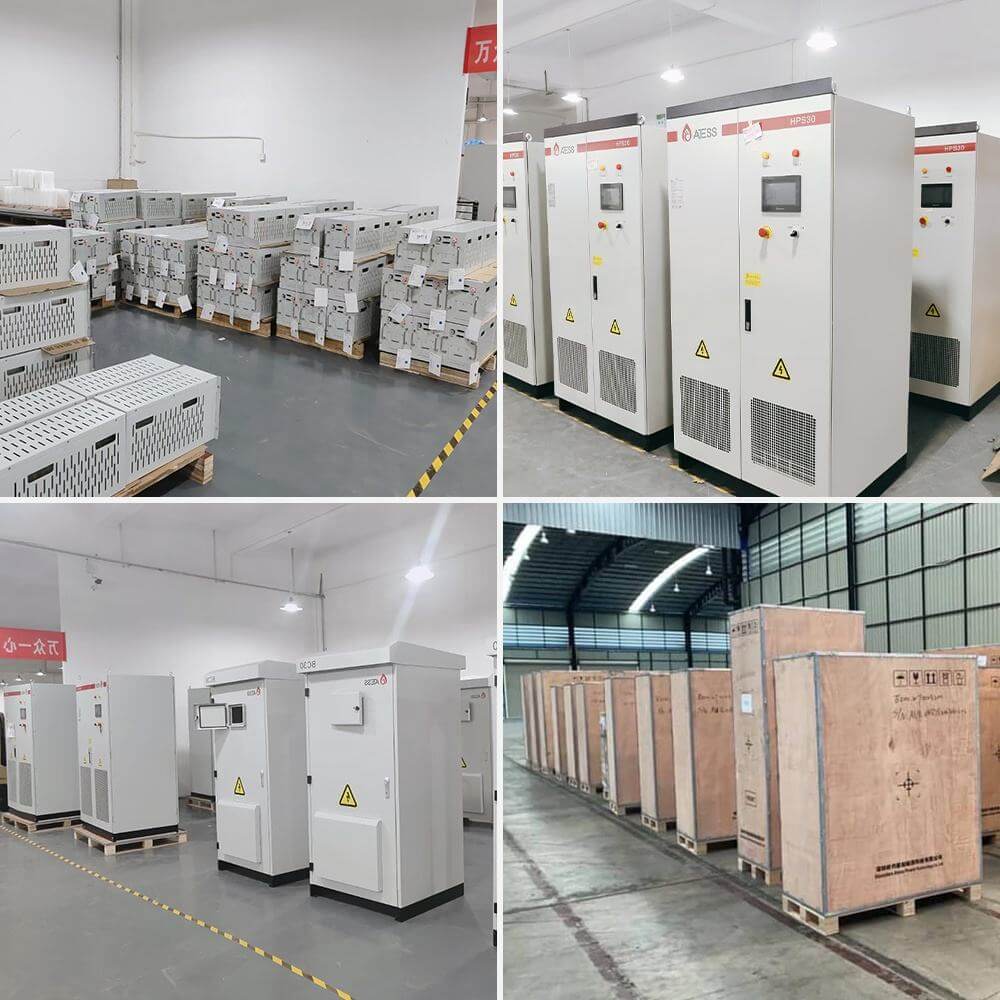

50 kw hybrid solar inverter
Mdoel
HPS30kVAHPS50kVAHPS100kVAHPS120kVAHPS150kVA
AC (Grid-connected)
Apparent power
33kVA55kVA110kVA132kVA165kVA
Rated power
30kW50kW100kW120kW150kW
Rated voltage
400V
Rated current
43A72A144A173A217A
Voltage range
360V – 440V
Rated frequency
50/60Hz
Frequency range
45~55/55~65Hz
THDI
<3%
PF
0.8lagging~0.8leading
AC connection
3/N/PE
AC input
60kVA100kVA200kVA240kVA240kVA
AC(Off-grid)
Apparent power
33kVA55kVA110kVA132kVA165kVA
Rated power
30kW50kW100kW120kW150kW
Rated voltage
400V
Rated current
43A72A144A173A217A
THDU
≤2%linear
Rated frequency
50/60Hz
Overload capability
110%-10 mins 120%-1 min
DC (Battery and PV)
Max PV open-circuit voltage
1000V DC
MAX PV power
45kWp75kWp150kWp180kWp225kWp
PV MPPT voltage range
480V-800V DC
Battery voltage range at Max.charge power
450V-600V500V-600V500V-600V517V-600V500V-600V
Battery voltage range
352-600V
Max.charge power
45kw75kw150kw180kw225kw
Max.discharge power
33kW55kW110kW132kW165kW
Max.charge current
100A150A300A350A450A
Max.discharge current
93A156A313A374A467A
General Information
Protection degree
IP20
Noise emission
<65dB(A)@1m
Operating temperature
-25 °C~+55 °C
Cooling
Forced-air
Relative humidity
0-95% non-condensing
Maximum altitude
6000m (derate over 3000m)
Dimension (W/H/D)
950/1860/750mm1200/1900/800mm
Weight
505kg610kg948kg1025kg1230kg
Build-in transformer
Yes
Transfer between on/off grid
Automatic≤10ms
Standby consumption
<30w
Communication
Display
Touch screen
Communication
RS485/CAN
Certificate
Certificate
CE , MEA , PEA , EN 61000-6-4:2007+A1:2011 , EN61000-6-2:2005 , EN62109-1:2010 , EN62109-2:2011
